Description

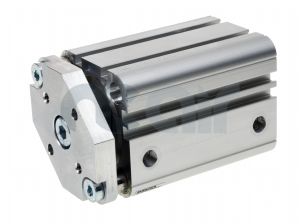

A range of short stroke pneumatic cylinders with compact installation dimensions, suitable for a wide range of applications including material handling systems, clamping and locking operations.
Non-rotating Piston rod with male thread and front plate.
Sizes
Bore: 16, 20, 25, 32, 40, 50, 63, 80 & 100mm
Stroke Length: 5mm to 150mm
Standard: ISO 21287
Material
Cylinder Tube: Anodized Aluminium
Piston Rod: Stainless Steel
Front Cover: Aluminium
End Cover: Aluminium
Seal: Polyurethane
Scraper: Polyurethane
Operating Conditions
Max Pressure: 10 bar
Temperature: -20 to +80 Deg C
Technical Details
|
Datasheets  Click Here |
