Description

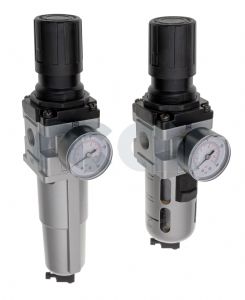

Marsh Filter/Regulator for compressed air & pneumatics. Suitable for a wide range of appliactions in industry.
This is a competitive range with good flow rates.
Port sizes 1/4" up 1" covering flow rates up to 5500 litres/min.
Available with manual or automatic drain and 10 or 20 bar maximum working pressure.
10 bar option has a polycarbonate bows with guard and the 20 bar option has a metal bowl.
Filtration level is 50 micron - (1, 5, 25, 40 and 100 micron available on request)
Pressure adjustment range is 0.5 - 10 bar (0.2 - 2, 0.2 - 4, 0.5 - 7 bar ranges available on request) - the regulator is relieving type.
The filter/regulator is supplied complete with wall mounting bracket and panel mount nut.
Pressure gauge must be ordered separately.
The filter/regulator can be modular mounted with other components in this range with the same body size or series.
Please contact us with details of your requirements - the team at Northern Compressed Air is keen to help.
Technical Details
|
Datasheets  Click Here |
