Check valve 1/8" to 3/4" BSP 0.5 - 15 bar

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

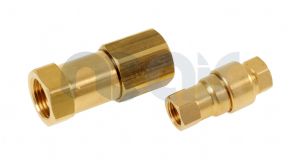

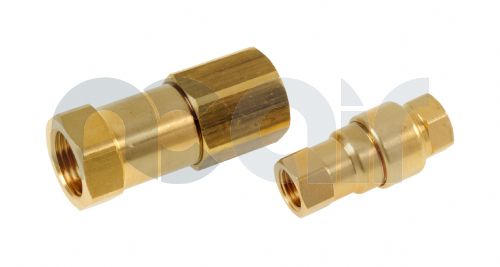

Poppet type non return valve, female threaded 1/8" to 3/4" BSP. Suitable for compressed air 0.5 to 15 bar.

Flow rate is for 6 bar with 1 bar pressure drop.

Series: NR01

Technical Details

Housing:	Brass
Seals:	Acrylonitrile Butadiene Rubber
Pressure:	0.5 to 15 bar
Temperature:	-10 to +60 deg C (ambient)
	-10 to +60 deg C (medium)

Datasheets

Check valve 1/8 to 3/4 BSP 0.5 - 15 bar datasheet

Click Here

Prices (Click quantity for more availability info)

Thread	Flow (Qn - l/min)	Order Code	Available	Each

1/8" BSP	230	120371	2	£23.55
1/4" BSP	1050	120372	2	£29.03
3/8" BSP	1650	120373	2	£39.60
1/2" BSP	2200	120374	2	£42.78
3/4" BSP	6200	120375	1	£85.43

(All Prices Exclude VAT)
