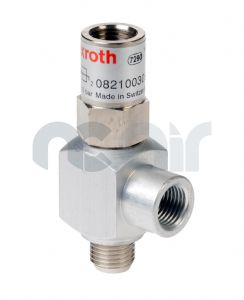

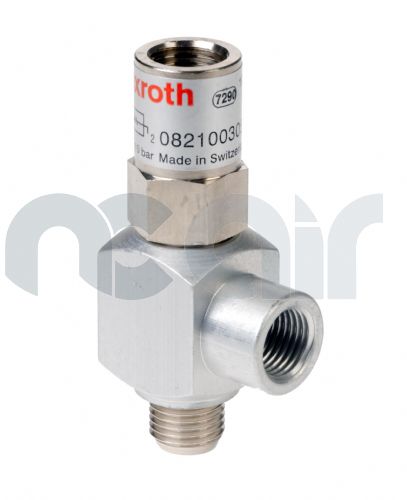

Non return valve - pilot operated 1/8" & 1/4" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Pilot operated non return valve available with 1/8" and 1/4" BSP threads.

Allows a flow of air in one direction only unless a pilot signal is applied to port 12 in which case flow of air is permitted in both directions.

Manufacturers ref: NR02

Technical Details

Pressure:	0.5 - 10 bar
Temperature:	-20 to +80 deg C
Qn:	300 l/min (1/8" BSP)
	680 l/min (1/4" BSP)
Housing:	Brass, nickel plated
Seals:	Acrylonitrile Butadiene Rubber

Datasheets

Non return valve - pilot operated 1/8 & 1/4 BSP datasheet

Click Here

Prices (Click quantity for more availability info)

Thread	Order Code	Available	Each	Quantity
1/8" BSP	122931	2	£70.70
1/4" BSP	122932	2	£85.67

(All Prices Exclude VAT)
